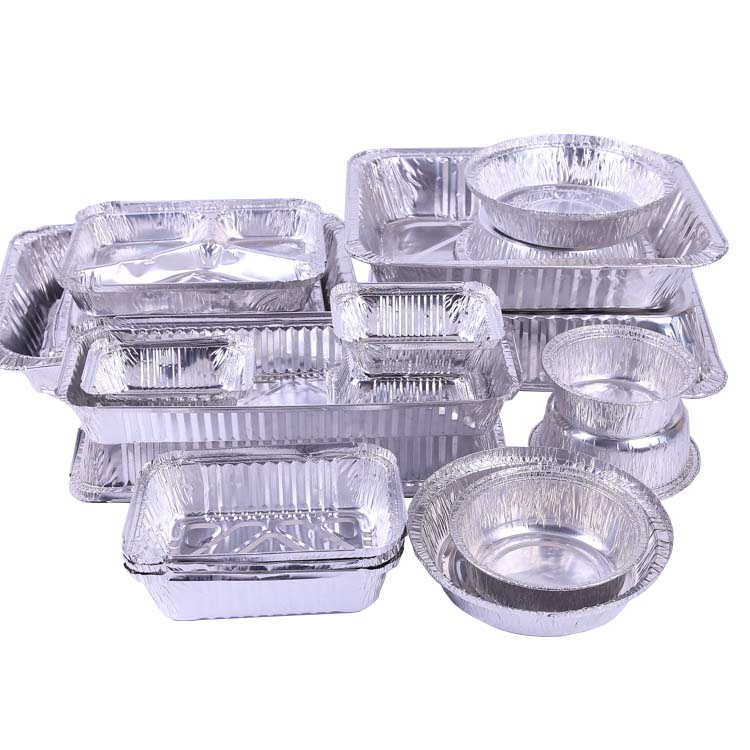

Semi auto kitchen foil tray production machine is a small production line for making of aluminium foil tray.
The semi auto production line includes automatic feeder,high accuracy press,and the mould is optional for buyers.
I. Aluminum Foil Feeding Machine:
| Max. Width of Roll | 680mm |
| Max. Unwind Roll Diameter | Ф600mm |
| Aluminium Foil ID | 76mm(3inch) |
| Feeding Speed | 0-30m/min |
| Feeding Length | 20-900mm |
| Feeding Accuracy | ±0.3mm |
| Working Voltage | 380/220V option |
II. High accuracy press:
| Model | PPD-45T |
| Nominal Pressure | 450KN |
| Line speed | 30-50times/min |
| Slide Block Stroke | 230mm |
| Maximum Die Set Height | 400mm |
| Screw Hole of Mould | 50*60mm |
| Worktable Size | 1000*800mm |
| Total Power | 7.5kw |
III.Mould:
SIZE DEPOND ON BUYERS' REQUIREMENT.
